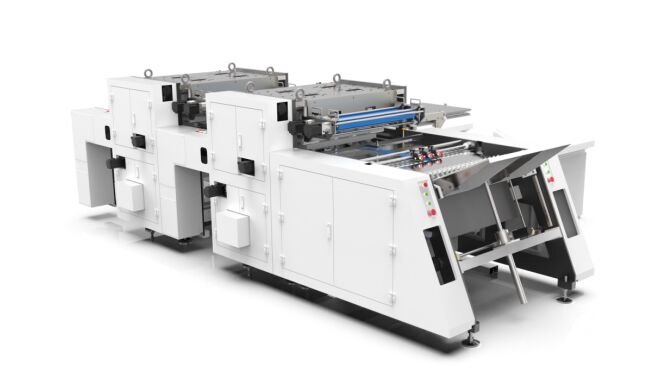

LY-820TJ Intelligent Automatic Stamping Machine
The LY-820TJ Intelligent Automatic Stamping Machine features a modular design that combines feeding and functional modules for one-step hot stamping, multi-color overprinting, and 3D embossing. It supports paper from 80–400 gsm, four independent temperature zones (60–150°C), and achieves ±0.01 mm accuracy with a maximum stamping area of 780×560 mm.
The cam-link front suction feeder handles up to 400 mm paper stacks, while the servo-driven crankshaft system ensures precise pressure. Quick template change is enabled by a pull-out flip-type transfer plate. Operating at 20–26 pcs/min with 42T stamping pressure and 15kW power, the machine offers high efficiency and reliability.
Key Features
- The device adopts a modular splicing design, which is freely combined by the feeding module and the functional module, It supports one-time molding of hot stamping, multi-color overprinting, and three-dimensional embossing processes, effectively reducing process losses and significantly improving production efficiency and finished product accuracy.
- The conveyor belt implements variable frequency suction adjustment for different grams of paper to meet all kinds of package paper hot stamping needs, extensive used in products. Paper thickness 80-400 grams.
- Four different temperature adjustable control area easy to set for any materials' stamping needs from 60-150 degrees.
- The feeding configure sensor to test feed double or no feed paper. After the stamping is completed, the paper is automatically received by machine.
- The machine with front guide, side gauge and laser sensor for a high precision positioning, ±0.01mm. Max stamping area is 780mm*560mm.
- The use of the suction cup staggered alternating transmission system avoids problems such as offset and misalignment that are prone to occur during the transmission process, and lays a solid foundation for high-quality hot stamping technology with stable and reliable high-precision transmission.
- In order to ensure the accuracy of the secondary hot stamping,Alternating Feed System for Typographic Typesetting.
Equipment Details:
|
The pull-out flip-type transfer plate structure can realize the rapid loading and unloading and switching of hot stamping templates, shortening the plate changing time of the equipment with the maximum hot stamping specification of 780*560mm by ±0.01mm, and meeting the multi-batch and diversified production needs.
|
|
The machine with front guide, double side gauge and laser sensor for a high precision positioning,±0.01mm. Large hot stamping area, 780mm*560mm.
|
|
Four temperature zones, all can be adjusted, so that can meet different materials' stamping needs. (60-150 degrees)
|
|
The cam-link front suction paper feeding method is adopted to achieve stable and efficient paper feeding. The paper stacking height can be 400mm. |
|
The equipment adopts a servo-driven crankshaft transmission system, which achieves accurate output of the combined pressure through precise control. |
|

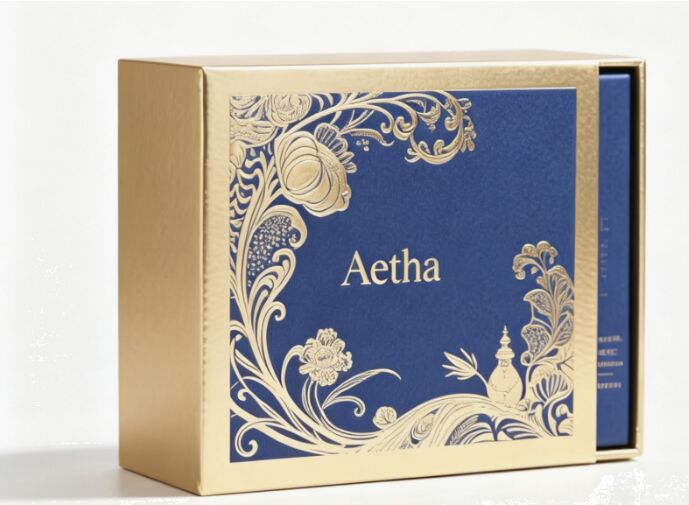

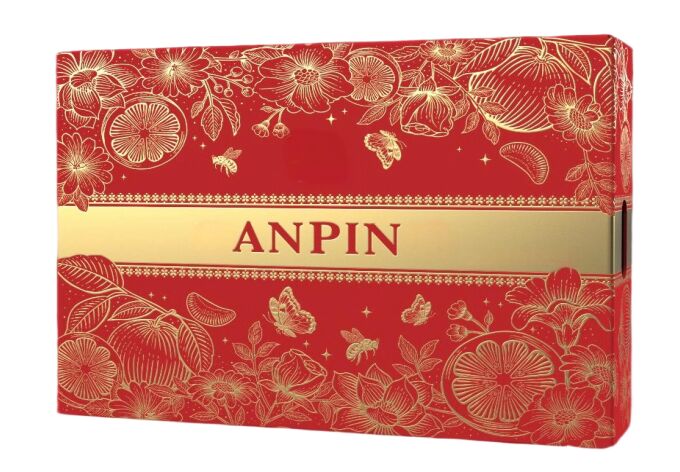

Single foil stamp
|
|
Colour register track
|
| |
|
|

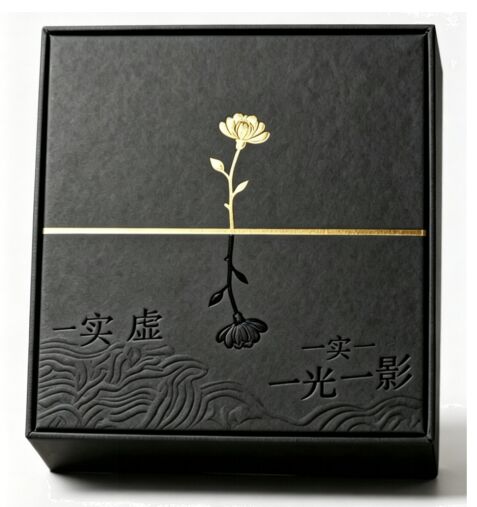

3D hot foiling stamping
|
Embossing |
Technical Specification
|
Specifications
|
LY-820TJ |
|
Paper size (L*W)
|
Max: 820*600mm
Min: 200*100mm
|
|
Stamping working size (L*W)
|
Max: 780*560mm
Min: no limited
|
|
Noise
|
70dB |
|
Paper thickness
|
80-400g |
|
Paper stacking height
|
400mm |
|
Speed
|
20-26 pcs/min |
|
Stamping pressure
|
42Ts |
|
Thickness of hot stamping plate
|
1.5-6mm |
|
Accuracy
|
±0.01mm |
|
Power supply
|
380V/50Hz |
|
Max power
|
15KW |
|
Machine weight
|
7000kg |
|
Machine dimension
|
L3000*W2300*H1285mm |
